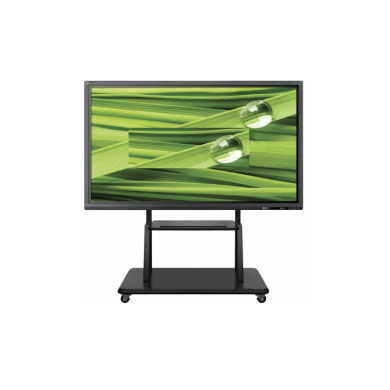

| Model | FMGM55S4 | ||
| Display Panel | |||
| Panel |
55 inches LED backlight |
||
| Display Screen Size | 55'' | ||
| Active Area(mm) | 1209.6 (H) x 680.4 (V) | ||
| Resolution | 3840×2160 | ||
| Brightness | 500 cd/m2 | ||
| Contrast Ratio | 4000:1 | ||
| Viewing Angle | ( R/L 79 (Min.), U/D 79 (Min.)) | ||
| Display Colors | 1.07G colors (8-bit+FRC) | ||
| The Response Time | 9.5ms | ||
| Ports | |||
| Audio video interface | HDMI IN、 AUDIO OUT | ||
| The network interface | LAN、 WIFI (IEEE802.11ac 2.4GHz/5GHz) | ||
| Storage extension | SD Card 64GB (Max) | ||
| Other interfaces | AC IN、 USB (3.0））*2、 USB (2.0））*3、 TOUCH USB (B Type）、 RS232(DB9）、 TF CARD | ||
| Parameter | |||
| OS | Windows 10(OPS)&Android5.0 | ||
| Processor | MSD6A828EVC | ||
| CPU | ARM A53×4 1.4GHz | ||
| GPU | ARM Mali450 MP4(4+2) 450MHz | ||
| RAM | 2G | ||
| ROM | 16G | ||
| Video file format | Support MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, FLV and other mainstream video formats | ||
| Audio file format | Supports MP3 and other audio formats | ||
| Image | Supports JPG, JPEG, BMP, PNG, GIF and other image formats | ||
| Text | TXT | ||
| Play mode | Horizontal screen, full screen play | ||
| Program transmission | USB | ||
| Mode | New air /C series | ||
| Touch type | Infrared touch | ||
| Touch Points | 20 points | ||
| Touch resolution | 32767 *32767 | ||
| Touch the accuracy | More than 90% of the touch areas were ±2mm | ||
| Response time to touch | <15ms | ||
| Input Method | Finger,gloved hand or opaque object | ||
| Minimum touch object |
Single point 6mm,Multipoint 8mm |
||
| Product Size(mm) | 1258.98(H)*729.6(V)*94.6(D) | ||
| Package Size(mm | 1437(H)*845.6 (V)*186.6(D) | ||
| Weight | Net：27.6KG Gross：32.85KG | ||
| Power consumption | 203W(Max) | ||
| Speaker | 2*10W 8Ω | ||
| VESA | 400*400mm | ||
| Mount | Wall mount 、 freestanding mount | ||
| machine color | Black | ||
| Power Supply | AC 100 240V(50/60HZ) | ||
|
Working environment |
0〜 4 0℃ 10% 〜 85%RH No condensate) | ||
| Storage environment |
-1 0 〜 6 0℃ 10% 〜 90%RH No condensate) |
||
