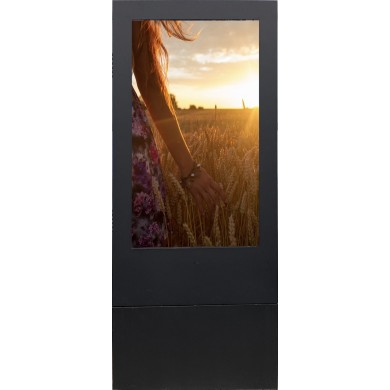

| Model | FMF55AID | |
| CPU | Dual Core ARM Cortex A9/1.6GHz | |
| Operation System | Android 4.2.2 | |
| RAM | 1GB | |
| NAND Flash | 8GB | |
| Network | WIFI, LAN | |
| Screen Size | 55'' | |
| Display Size(mm) | 680.4(W)x1209.6(H) | |
| Resolution | 1080X1920 | |
| Brightness | 2500 cd/㎡ | |
| Contrast Ratio | 3000:1 typ | |
| Viewing Angle 178° | 178° | |
| Aspect Ratio | 9:16 | |
| Colors | 16.7M | |
| Life Time | 50000 Hours | |
| Speakers | 8Ω 5W x2 | |
| Input Ports | Video | VGA x1, HDMI x1 |
| Audio | Audio x 1 | |
| Other | USB x2 | |
| Power Supply | AC 108-115V / AC 208-240V | |
| Product Size(mm) | 880(W)x2100(H)x141.5(D) | |
| Weight | 118Kg | |
| Cooling System | Built in smart fan cooling | |
| Working Temperature | -30℃ ~ 55℃ | |
| Storage Temperature | -10℃ ~ 60℃ | |
| Brightness Adjustment | According to ambient light | |
|
Supported Media Format |
Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv | |
| Picture: JPG, JPEG, BMP, PNG, GIF | ||
| Audio: MP3 | ||
| Timer On/Off | Support (Set by daily or weekly) | |
| Scrolling Text | Supported by Digital Signage Software | |
| Multi Zone Display | ||
