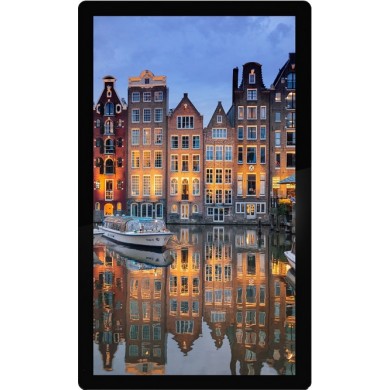

| Model (10 points touch) | FMTC43H1 43” | |
| Display | ||
| Product size (mm) | 997.6 (H)×585.8 (V)×50.6 (D) | |
| Carton size（mm） | 1076（H）×149（V）×680（D） | |
| Panel | 43 inches LED backlight | |
| Active Area(mm) | 941.2（H）× 529.4 (V） | |
| Resolution | 1920×1080 | |
| Brightness | 450 cd/m2 | |
| Contrast Ratio | 1200:1 | |
| Viewing Angle | R/L 89, U/D 89 | |
| Color Depth | 8bit, 16.7 Million colors | |
| Backlight Life Time | 30000 hours | |
| System configuration | ||
| Operating system | Android 7.1 | |
| CPU | RK 3288 Quad-core ARM Cortex A17 （Max.1.8GHz） | |
| GPU | Quad-core ARMMail-764 | |
| Memory | DDR3 2GB | |
| Storage | 8GB eMMC | |
| Touch | ||
| Touch type | Capacitive | |
| Touch point | 10 point | |
| Response time | <10ms | |
| Enter mode | Finger、capacitive stylus | |
| External ports | ||
| Input Terminals | HDMI IN×1、VGA IN×1、Analog Audio IN×1 | |
|
Control Terminals |
Ethernet RJ45 x 1, WiFi x 1, USB 2.0 x 2 | |
| Storage extension | Micro TF Card 32G (Max) | |
| Multimedia | ||
| Media file formats | Video： MPEG1、MPEG2、MPEG4、H.264、WMV、MKV、TS、flv and other mainstream video formats | |
| Audio：MP3 audio format, etc | ||
| Picture：JPG、JPEG、BMP、PNG, etc | ||
| Text：txt | ||
| Play mode | Horizontal, Vertical, Split display, Play List | |
|
Multimedia transmission |
USB、LAN、WAN | |
| Machine parameters | ||
| VESA (mm) | 400×200 (Screw type M6×10mm） | |
| Screen hanging mode | Portrait\Landscape | |
| Weight | Net: 16.7 KG, Gross:20.3KG | |
| Power consumption |
94W |
|
| Speaker | Stereo 2×2W 4Ω | |
| Timer |
Timing power on/off |
|
| AC Power Input Voltage | AC IN 100-240V | |
| Operating Temperature | 0〜40℃ | |
