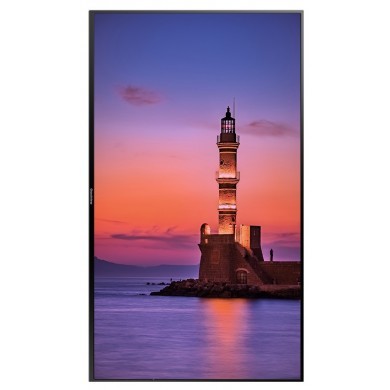

| Model | FMM65GUQ |
| Display panel | |
| Panel | 65 inches LED backlight |
| Active Area(mm) | 1428.5(H)×803.5(V) |
| Product Size(mm) | 1463.3(H)×838.3(V)×81.6(D) |
| Aspect Ratio | 16:9 |
| Pixel Format | 3840×2160 |
| Brightness | 500 nits |
| Viewing Angle | 178° |
| Color Depth | 10bit, 1.07 Billion colors |
| Backlight Life Time | 50000 Hours |
| Ports | |
|
Input/output |
HDMI IN *3, Type-c *1, HDMI OUT*1, Audio out *1, SPDIF *1 |
|
Control Terminals |
RJ45 IN*1, RJ45 OUT*1, WiFi*1, USB2.0*1, USB3.0*1, RS232 *1 |
| Media and Control | |
| CPU | Quad-core A55 |
| GPU | Mali G52MP2 |
| Memory | 4GB |
| Storage | 32G eMMC |
| Operation System | Android 11 |
| Video format |
MPEG-1 bitrate<20Mbps |
| Audio format | *.mp3 |
| Picture format | *.jpg, *.jpeg, *.bmp, *.png |
| Timer | Multi-period timing switch |
| Multimedia transmission | USB,LAN,WAN |
| Other Parameters | |
| Package Size(mm） | 1628(H)×208(D)×942(V) |
| Weight | Net：25.4KG, Gross：33.25KG |
| Speakers | 2×10W |
| VESA standard | 600x400 |
| Display direction | Landscape, portrait |
| Management software |
B/S framework: GTV Information Distribution System |
| AC Power Input Voltage | AC IN 100-240 VAC |
| Power Consumption | 350 Watt |
| Operating Temp.(°C） | 0〜40℃ |
| Operating Ambient Humidity（RH） | 10% 〜 80%RH |
DRAWINGS
User Guide
.
 |
L and PF Series User Manual.pdf |  |
|
Quick start- PF Series.pdf | |
 |
Ezposter.exe (Software) |  |
 |
Poster Editor (Software Tutoriar) |  |
