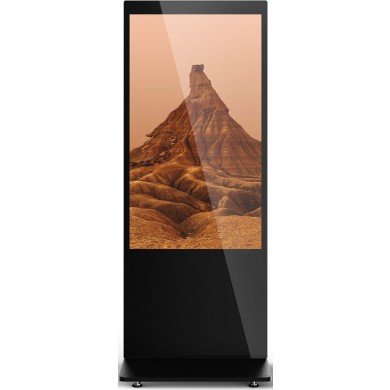

| Model | FML55H10 |
| Display panel | |
| Panel | 55 inches LED |
| Active Area(mm) | 1210.6（H）×681.4(V） |
| Product Size(mm) | 1938.5(H)×744.0(V)×41.2(Top) |
| Resolution | 1920×1080 |
| Panel Luminance | 530 cd/m2 |
| Contrast Ratio | 1200 |
| Viewing Angle | 178° |
| Backlight Life Time | 30000 hours |
| Media player | |
| CPU | RK 3288 Quad Core ARM Cortex A17 (Maximum 1.8GHz) |
| GPU | Quad Core ARMMail-764 |
| Operation System | Android 7.1 |
| RAM | DDR3 2GB |
| Media Transmission | USB, LAN, WAN |
| External Interface Portion | |
| AC input | AC switch*1 |
| Control Terminals | EthernetRJ45*1, USB*2, WiFi+ Bluebooth*1 |
| Extension Storage | Micro TF Card 32G (Max) |
| Media and Control | |
| Video format | MPEG1, MPEG2, MPEG4, WMV, MKV, AVI, TS, flv etc. |
| Audio format | *.mp3 etc |
| Picture and text | *.jpg, *.jpeg, *.gif, *.bmp, *.png, *.txt etc. |
| Orientation | Portrait |
| Play mode | Playlist, multi windows play, column play |
| Media Transmission | USB, LAN, WAN |
| Other Parameters | |
| Package Size(mm） | 2035（L）×270（W）×961（H） |
| Weight | Net：69.5KG Gross：93KG |
| Power Consumption | 155W |
| Speaker Power | Stereo 2×10W 4Ω |
| WatchDog | Supported |
| Time control | Multi Time Period auto on/off |
| Management | EzPoster / CDMS(GTV) |
| Power Supply | AC110-240V |
| Operating Temperature（°C） | 0〜40℃ |
| Operating Ambient Humidity（RH） | 10% 〜 80%RH |
| Accessories | Remote control、Power cable |
DRAWINGS
User Guide
.
 |
L and PF Series User Manual.pdf |  |
|
Quick start- PF Series.pdf | |
 |
Ezposter.exe (Software) |  |
 |
Poster Editor (Software Tutoriar) |  |
