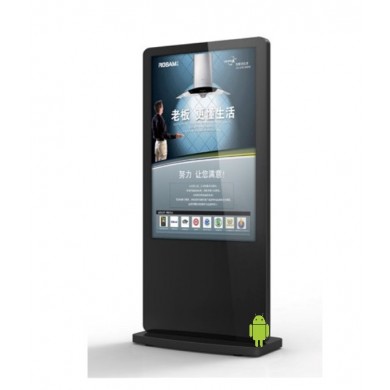

| Model | FML65H8 |
| Android CPU | Dual Core ARM Cortex A9/1.6GHz |
| GPU | Quad Core ARM Mali-400 MP |
| Operation System | Android 4.2.2 |
| RAM | DDR3 1GB |
| NAND Flash | 8GB, Support TF card expansion |
| Network | WIFI, LAN, 3G (Optional) |
| Display Screen Size | 65'' |
| Resolution | 1920x1080 |
| Product Size (mm) | 2200(H)x920(W)x50(D) |
| Display Size (mm) | 1430.5(H)x805.5(W) |
| Brightness | 350 cd/m2 |
| Aspect Ratio | 9:16 |
| Contrast Ratio | 5000:1 typ |
| Input Power Voltage | AC 110-240 V (50Hz-60Hz) |
| Working Temperature | 0℃ to 50℃ |
| Sound | 6W, 8Ω |
| Colors | 16.7M |
| Program Input Port | USB 2.0 auto import |
| AV Signal Input Port | VGA, HDMI, Audio (3.5mm) |
| Viewing Angle | 178 |
| Supported Media Format | Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv |
| Picture: JPG, JPEG, BMP, PNG, GIF | |
| Audio: MP3 | |
| Timer On/Off | Support (Set by daily or weekly) |
| Scrolling Text | Supported by EzPoster and CDMS software |
| Multi zone display | |
| Supported Software | EzPoster: Support Standalone and Intranet control function |
| CDMS: Support Internet control function | |
| Accessories | Remote Control, CD |
DRAWINGS
User Guide
.
 |
L and PF Series User Manual.pdf |  |
|
Quick start- PF Series.pdf | |
 |
Ezposter.exe (Software) |  |
 |
Poster Editor (Software Tutoriar) |  |
