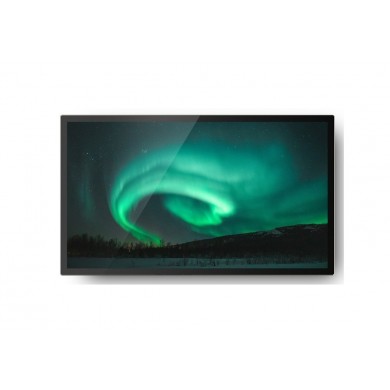

| Model (10 points touch) | FMTC22H1 22” | |
| Display | ||
| Product size (mm) | 529.6(H)×321(V)×42.3(D) | |
| Carton size（mm） | 675（H）×424.5（V）×118.5（D） | |
| Panel | 22 inches LED backlight | |
| Active Area(mm) | 475.0（H）×266.4(V） | |
| Resolution | 1920×1080 | |
| Brightness | 250 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Viewing Angle | R/L 89, U/D 89 | |
| Color Depth | 6bit, 16.7 Million colors | |
| Backlight Life Time | 30000 hours | |
| System configuration | ||
| Operating system | Android 7.1 | |
| CPU | RK 3288 Quad-core ARM Cortex A17 （Max.1.8GHz） | |
| GPU | Quad-core ARMMail-764 | |
| Memory | DDR3 2GB | |
| Storage | 8GB eMMC FLASH | |
| Touch | ||
| Touch type | Capacitive | |
| Touch point | 10 point | |
| Response time | 14ms | |
| Enter mode | Finger、capacitive stylus | |
| External ports | ||
| Input Terminals | HDMI ×1、VGA ×1、Audio IN×1 | |
|
Control Terminals |
Ethernet RJ45 x 1, WiFi x 1, USB 2.0 x 2 | |
| Multimedia | ||
| Media file formats | Video： MPEG1、MPEG2、MPEG4、H.264、WMV、MKV、TS、flv and other mainstream video formats | |
| Audio：MP3 audio format, etc | ||
| Picture：JPG、JPEG、BMP、PNG | ||
| Text：txt | ||
| Play mode | Horizontal, Vertical, Split display, Play List | |
|
Multimedia transmission |
USB、LAN、WAN | |
| Machine parameters | ||
| VESA (mm) | 400×200 | |
| Hanging mode | Hanging bracket/VESA installation | |
| Weight | Net: 6.1 KG, Gross:8.1KG | |
| Power consumption | 20W | |
| Speaker | Stereo 2×2W 4Ω | |
| Timer |
Timing power on/off |
|
| AC Power Input Voltage | AC IN 110-240V | |
| Operating Temperature | 0〜40℃ | |
