| Model (10 points touch) | FMM43STP | |
| Display | ||
| Product size (mm) | 1006.2(H)×594.2(V)×73(D) | |
| Carton size（mm） | 1151（H）×745（V）×245（D） | |
| Panel | 42.51 inches LED backlight( model:LD430EUE-FHB1） | |
| Active Area(mm) | 941.2（H）×529.4（V） | |
| Aspect Ratio | 16:9 | |
| Resolution | 1920×1080 | |
| Brightness | 450 cd/m2 | |
| Contrast Ratio | 1100:1 | |
| Viewing Angle | ( R/L 89 (Min.), U/D 89 (Min.)) | |
| Display Colors | 8bit, 16.7 Million | |
| Color temperature | 10000K | |
| Life Expectancy | 50000 hours | |
| Response time | 12ms | |
| System configuration | ||
| Main-board scheme | SWH5180 | |
| Operating system | Android 5.1 | |
| CPU | 4 core ARM Cortex A17 （max1.8GHz） | |
| GPU | 4 core ARMMail-764 | |
| Memory | 2GB | |
| Storage | 8G EMMC | |
| Touch | ||
| Touch device model | FB43WH00D-CT-A1 | |
| Touch type | Infrared touch | |
| Touch point | 10 points | |
| Touch resolution | 32767×32767 | |
| Touch precision | ±2mm(more than 90% of the touch area) | |
| Response time | <15ms | |
| Input mode | Finger, touch pen and other opaque objects | |
| Minimum touch object | Single point: 5ms, Multi-point:8ms | |

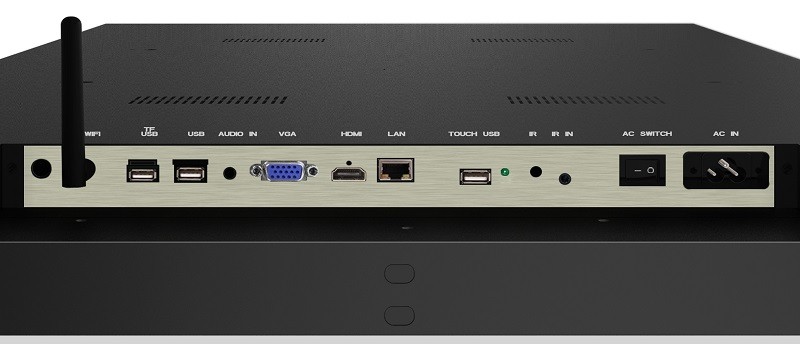

| External ports | ||
| Signal ports | HDMI IN×1、VGA IN×1、VGA Audio IN×1 | |
| Network ports | LAN(10/100M)×1 、WiFi×1(802.11bgn)、3G/4G Mobile network (optional) | |
| Storage extension | TF Card×1 （Max 32G） | |
| Other ports | AC IN×1、AC Switch×1、US3B（Android）×2 、Touch USB OUT×1、 IR IN（3.5mm）×1 |
|
| Multimedia | ||
| Media file formats | Video： MPEG1、MPEG2、MPEG4、H.264、WMV、MKV、TS、flv | |
| Audio：Support MP3 and other mainstream audio formats | ||
| Picture： JPG、JPEG、BMP、PNG、GIF | ||
| Text：txt | ||
| Other： none | ||
| Play mode | Horizontal screen, portrait screen, full screen and split screen play | |
| Program transmission mode | USB、LAN、WAN | |
| Machine parameters | ||
| VESA (mm) | 200×400 | |
| Screen suspension mode | Landscape、Portrait | |
| Menu language | Chinese、English | |
| Machine color | Black | |
| Weight | Net: 25 KG, Gross:28.5KG | |
| Power consumption | 68W (Max) | |
| Speaker | Stereo 2×2W 4Ω | |
| Intelligent volume | Time-sharing volume/adaptive volume | |
| Watchdog function | Support | |
| Timing | Multi-time timing power on/off, port timing automatic switch | |
| Management software | C/S framework: ADPE/Ezposter, B/S framework: GTV Information Distribution System | |
| Power supply | AC~100-240V (50/60Hz) | |
| Working Humidity（RH） | 0〜40℃ 10% 〜 85%RH No condensation | |
| Storage environment | -10〜60℃ 10% 〜 90%RH No condensation | |

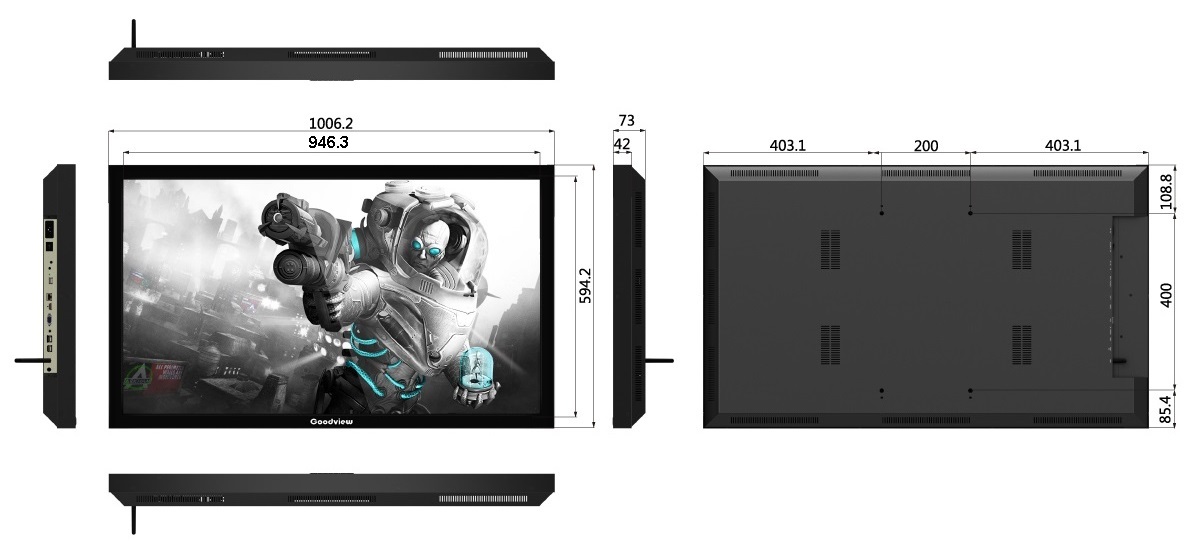

DRAWINGS
 |
L and PF Series User Manual.pdf |  |
|
Quick start- PF Series.pdf | |
 |
Ezposter.exe (Software) |  |
 |
Poster Editor (Software Tutoriar) |  |
