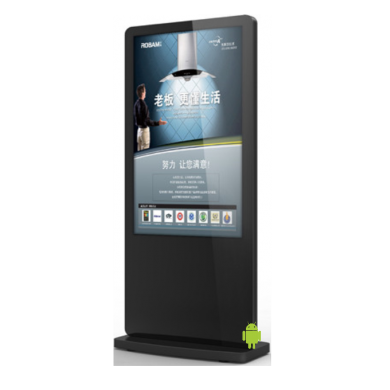

| Model | FML55E2-T |
| Display panel | |
| Panel | 54.65 inch LED backlit |
| Active Area(mm) | 1213.57（H）×684.17(W） |
| Product Size(mm) | 1947（H）×827（W）×79.5（D） |
| Aspect Ratio | 9:16 |
| Resolution | 1920×1080 |
| Brightness | 450 cd/m2 |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 178° |
| Display Colors | 16.7M |
| Life Expectance | 60000 hours |
| Connectivity | |
| I/O | RJ45*1, USB*2, HDMI*1, VGA*1, Audio*1, TF socket |
| WIFI | Yes |
| Bluetooth | Yes |
| Touch and System | |
| OS | Windows 10 Pro |
| Touch Points | 6 points |
| Touch Type | Infrared |
| Touch Objectives | Finger, touch pen, other none-sharp objectives |
| Processor | Intel Bay Trail-CR(Quad-core ), Z3735G |
| RAM | 2G |
| ROM | 64G |
| Memory Card Type | MicroSD(TF), support to up 128G |
| Other Parameters | |
| Weight | Net：88KG Gross：96KG |
| Power | 80W |
| Built-in Speakers | 6W, 8Ω |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Operating Temp.(°C） | 0〜40℃ |
| Operating Humidity（RH） | 10% 〜 80%RH |
| Accessories | Remote control、Power cable |
DRAWINGS
User Guide
.
 |
User Manual-Universal-User-Manual.pdf |  |
|
Quick start- QSG-MxxS4-PD&MxxST-MxxSD-V1.0.pdf | |
 |
Ezposter.exe (Software) |  |
 |
Poster Editor (Software Tutoriar) |  |
